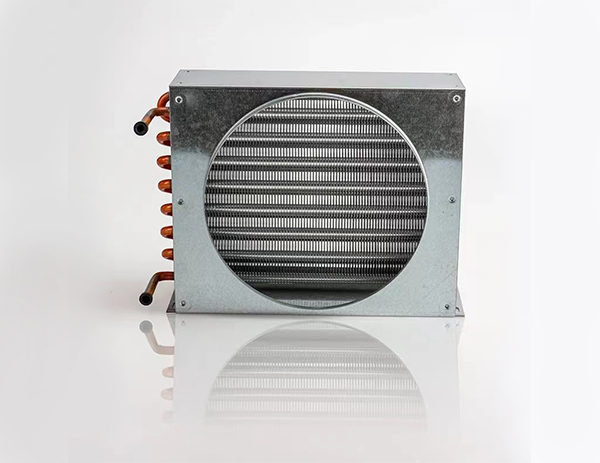

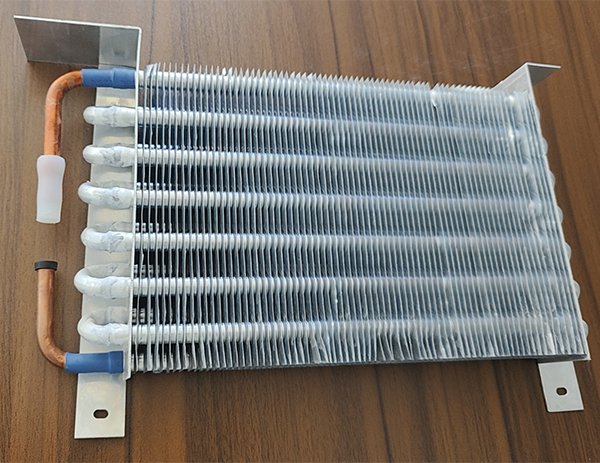

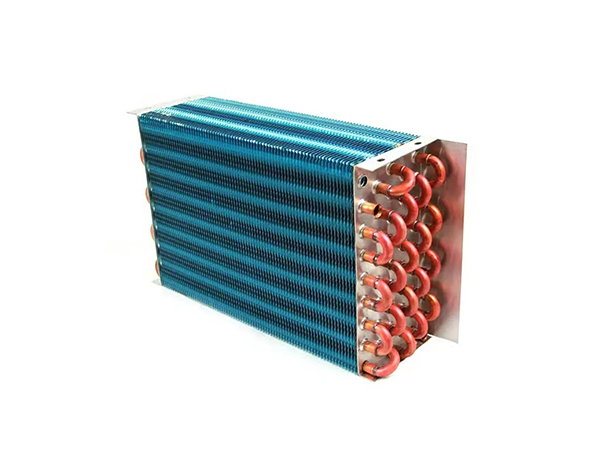

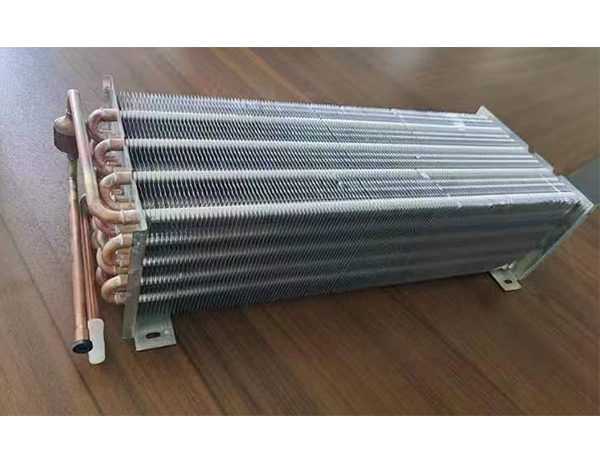

Finned evaporator/condenser (copper/aluminum tube)

Rawmaterials:1)Copper/aluminum pipes:¢8.0×0.7～1mm2)Aluminumfoil:sheetthicknessT=0.15~0.25mm3)Sidepanel:aluminumplateT=0.8~1.5mm Application:Refrigerator,freezerandotherrefrigerationequipmentevaporator

Raw materials:
1) Copper/aluminum tube: ¥ 8.0~¥ 9.52
2) Wall thickness: smooth tube or internally threaded tube T=0.32~0.36mm
3) Aluminum foil: sheet thickness T=0.13~0.25mm
4) Side plate: aluminum plate T=0.8~1.5mm

Application:
Refrigerator, freezer and other refrigeration equipment evaporator

Main processes:
Bending, stamping, expanding, degreasing, welding assembly, leak detection, drying, inspection, packaging

Technical specifications:
1) Hole spacing: 25 × 25 square shape
2) Expansion capacity: 6 rows, 24 holes
3) Pitch: 3.5-6mm
4) Length: 3500mm (max)

Product performance:
Meet the refrigeration requirements of the designed refrigerator and freezer

Internal standards for refrigeration system pipelines:

Internal volume (cm ³) ≤ 100cm ³ 101-200 101-400 401-800 Residual moisture (mg) ≤ 10 ≤ 20 ≤ 25 ≤ 30 Residual impurities (mg) ≤ 100mg/100cm ³ Maximum single impurity ≤ 2mg
